Trenchless sewer repair — sold as no-dig, pipe lining, CIPP or pipe bursting — costs $80 to $250 per foot, putting a typical residential lateral at $4,000 to $15,000.
Those numbers sit inside the same band as a conventional open-cut replacement, which runs $50 to $250 per foot. That overlap is the whole story, and almost every article on this subject gets it wrong in the same direction. Trenchless is not a cheaper way to buy a pipe. It is a way to avoid paying for destruction and restoration. Where there is little to destroy, it saves you nothing.
What “no dig” actually means
No-dig is a marketing term, not a technical one, and it is slightly untrue: every trenchless method needs excavation somewhere. What it avoids is the continuous trench along the full length of the pipe.
Two methods dominate residential work:

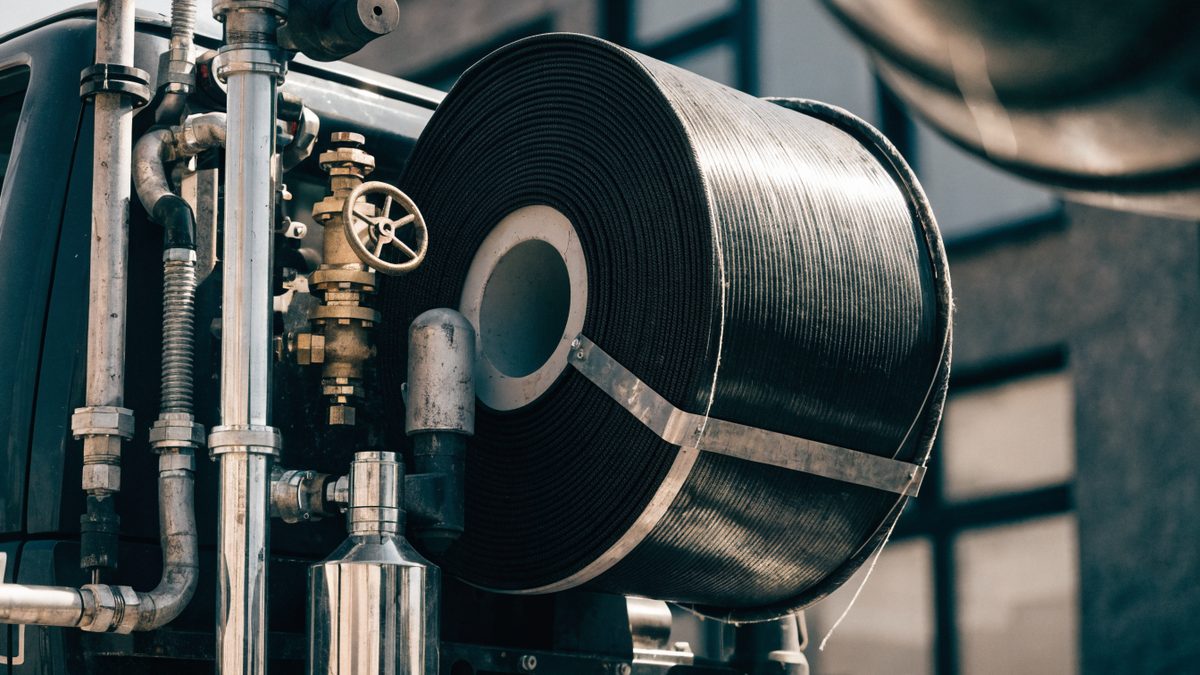

- CIPP lining (cured-in-place pipe). A resin-saturated felt liner is pulled or inverted into the existing pipe and cured — with hot water, steam or UV light — into a hard pipe-within-a-pipe. The old pipe becomes a mold. Requires the host pipe to be structurally continuous.
- Pipe bursting. A bursting head is pulled through the old pipe, fracturing it outward into the surrounding soil while dragging a new HDPE pipe in behind it. Destroys the old pipe entirely and can install a larger diameter.
The choice between them is a technical one driven by the damage and the site, not by price. It is set out in pipe lining vs pipe bursting.
The cost breakdown
| Line item | Typical cost | Notes |
|---|---|---|
| Camera inspection | $250–$550 | Mandatory. No competent firm lines a pipe it has not seen. |
| Cleaning / jetting prep | $350–$600 | The host pipe must be scoured before lining. Not optional. |
| CIPP lining | $80–$250 /ft | Diameter, length and cure method drive it. |
| Pipe bursting | $100–$250 /ft | Higher equipment cost; installs new pipe rather than a liner. |
| Access pits | $500–$1,500 each | Usually two. Depth and location decide the price. |
| Reinstating branch connections | $150–$500 each | Lining covers branch openings; they are cut back open by robot. |
| Permits | $100–$1,500+ | Wildly variable. Street work is the expensive case. |
| Post-work camera | Often bundled | Insist on it. It is your proof of result. |

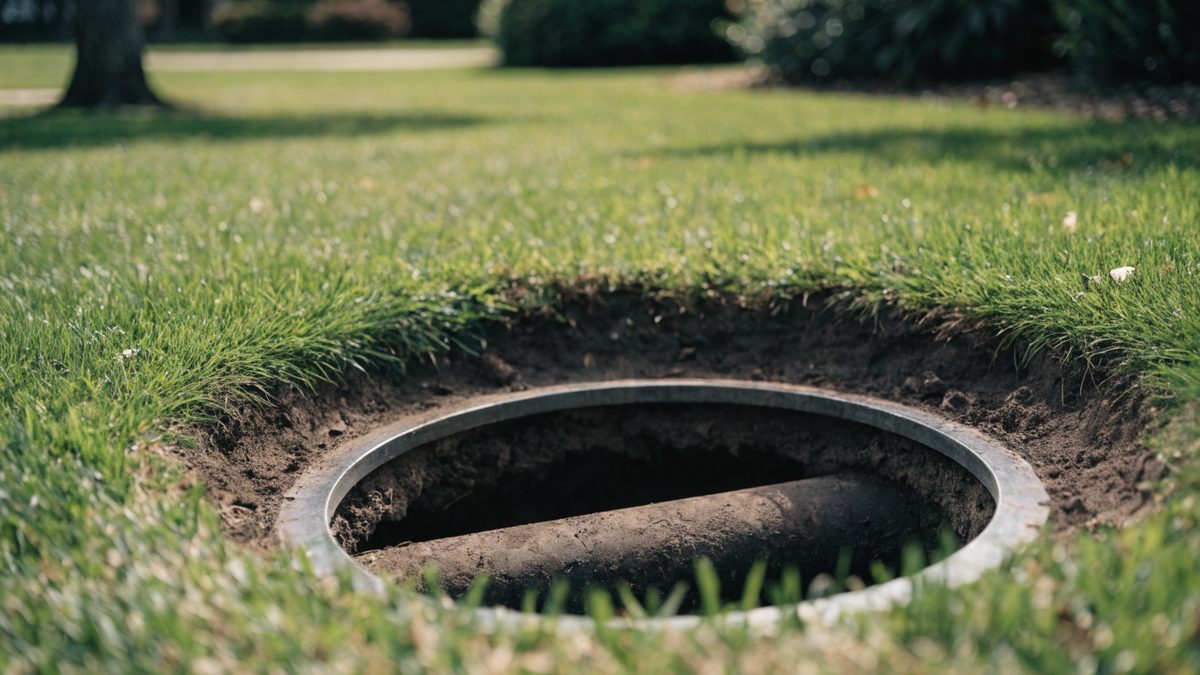

Two of those lines are the ones people forget when comparing quotes. Access pits are real excavation with real restoration attached — a “no-dig” job still leaves you two holes. And branch reinstatement is a per-connection charge that a quote written as a flat per-foot number may not include.
When trenchless is genuinely cheaper
The saving is proportional to what sits above the pipe. Trenchless wins clearly when the run passes under:
- A driveway, patio, garage slab or pool deck
- A public street or sidewalk, with permits and restoration to municipal specification
- Mature landscaping, retaining walls or hardscape
- Anything requiring traffic control to open
In a dense-city case, the margin is enormous — the restoration avoided can exceed the entire cost of the pipe work. That is the arithmetic behind New York and, for different reasons, Illinois, where the homeowner owns the line into the roadway.
When open trench still wins
This is the part the trenchless industry does not advertise, and it is not a marginal case.
On a short, shallow run under open lawn, conventional excavation is frequently cheaper. There is little to restore beyond grass and topsoil, the machine is on site for a day, and you avoid paying for two access pits, a cleaning pass and specialist equipment mobilization. A 30-foot lateral four feet deep under a back garden is often a $4,000 open-cut job and a $6,000 lined one.
I’ve seen this play out on plenty of jobs. A few years back, on a job in Texas, a homeowner wanted lining under a stretch of plain backyard lawn: no driveway, no patio, nothing worth protecting. Once we put the two bids side by side, digging it the old-fashioned way came out cheaper and faster, and that’s what we did. In my experience, people reach for the fancier method before anyone has asked what there actually is to protect.
Open trench also wins, or is simply the only option, when:
- The pipe has collapsed — there is no host left to line and often no path to pull a bursting head through.
- The line has a belly. Lining follows the existing grade, so it preserves the sag perfectly. See sewer line belly.
- The pipe is severely offset at joints, or deformed Orangeburg.
- The diameter is already marginal and lining would reduce it further.
Lining does not change grade. If your line has a low spot holding standing water, a liner will hold that same standing water — in a smoother, more expensive pipe.
If a firm quotes lining without showing you footage that rules out a belly, that is the question to ask before anything else. It is the most common way a $9,000 trenchless job fails to fix the problem it was bought for.
Why the same job gets quoted at $80 and $250 per foot
The spread is not arbitrary. Five inputs move it:
- Diameter. A 4-inch residential lateral is at the bottom; 6-inch and larger climbs quickly.
- Length. Mobilization is a fixed cost spread over the run. Short jobs carry a high effective per-foot rate — a 20-foot repair may cost $250 per foot and still be the cheapest quote you get.
- Cure method. Ambient cure is cheapest and slowest; steam and UV cost more and finish the same day.
- Depth and access. Pit depth, and whether equipment can reach the pit locations at all.
- Market. Regional labor rates move this as much as any technical factor. Compare the California and Texas figures for the scale of it.
What a proper trenchless quote contains
A quote you can actually hold someone to names all of the following. If any is missing, it is an estimate with change orders waiting inside it:
- Method — lining or bursting — and why that method for this damage
- Length to be treated, and the footage range it covers from the access point
- Number and location of access pits, and who restores them
- Whether cleaning and the pre-work camera are included
- Number of branch connections to be reinstated, priced
- Permit responsibility and cost
- Liner material and thickness, or new pipe material and diameter
- Warranty term, and what specifically it covers
- Post-installation camera footage delivered to you
Do not compare the pipe prices. Compare the totals including restoration.
Ask the open-cut contractor to price the restoration explicitly — driveway, patio, landscaping, roadway, to the standard required. Then compare that total against the trenchless total including access pit restoration. That single line item decides the answer far more often than the method does.
Lifespan and warranty
Manufacturers of CIPP liners generally cite design lives in the region of fifty years, and HDPE installed by bursting is a comparable proposition. Both are, on paper, at least as durable as the clay or cast iron they replace.
Contractor warranties are a different matter and usually far shorter — commonly five to ten years, sometimes limited to defects in workmanship rather than performance. Read what the warranty actually covers, who honors it if the firm closes, and whether it survives a sale of the house. On a five-figure job that is not a formality.
Before you accept a quote
- Get the footage. Method selection is only defensible against a camera survey — see how to read a sewer scope report. Professional inspectors grade defects found on camera against the NASSCO Pipeline Assessment and Certification Program (PACP), the standardized 1-to-5 severity scale used across the industry, so ask to see that rating alongside the footage.
- Rule out a belly explicitly. Ask the question in those words.
- Price the open-cut alternative including full restoration, and compare totals.
- Count the access pits and establish who puts the ground back.
- Confirm branch reinstatement is priced, not assumed.
- Model the range with the cost calculator, and read trenchless vs traditional sewer repair for the method-by-damage decision.
Is no-dig sewer repair the same as trenchless?
Yes. “No dig” is the consumer-facing name for the same family of methods — chiefly CIPP lining and pipe bursting. It is a slight overstatement, since both need access pits at each end.
Is trenchless always cheaper than digging?
No. It is usually cheaper when the pipe runs under something expensive to restore, and often more expensive on a short shallow run under open lawn. Compare totals including restoration, not per-foot pipe prices.
Does lining reduce the pipe diameter?
Slightly — a liner takes up a few millimeters of wall thickness. On a healthy 4-inch lateral this is immaterial, because the smooth new surface flows better than scaled old pipe. On a line already undersized, it is a genuine consideration.
Can a collapsed pipe be lined?
No. Lining needs a continuous host pipe to cure against. A collapse means excavation, or pipe bursting if a path can still be established through the line.
How long does the work take?
Most residential lining jobs are completed in one day once the pits are open, with steam or UV cure. Bursting is comparable. The preparation — camera, cleaning, permits — is what stretches the calendar.
Ranges surveyed August 2026 across US residential markets, normalized per foot and excluding permits and restoration unless stated. Method suitability depends on the condition of the specific pipe and can only be established by inspection. See the Methodology and Disclaimer.
